16 Foam Tool Organizers to Fit
Husky 1025-pc Set in 56-inch Toolbox #1

Toolbox model HOTC5623BB2S

Back to all organizers for the Husky 1025-piece set.

FoamFit Tools section divider

Overview

Fits Husky Set H1025MTS into toolbox model HOTC5623BB2S

Uses 16 drawers. Lid compartment and 7 drawers are not used.

Please measure the toolbox to confirm the drawer sizes before ordering.

Organizers are also sold individually.

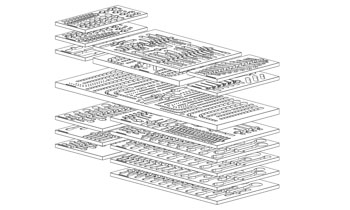

Exploded View Diagram (pdf)

Set of 16 Drawer Inserts

$1,217.80



FoamFit Tools section divider

Suggested Drawer Arrangement

drawer layout for Husky 56-inch toolbox drawer1 drawer2 drawer3 drawer4 drawer6 drawer7 drawer10 drawer11 drawer12 drawer14 drawer15 drawer16 drawer18 drawer19 drawer20 drawer21 drawer22
Husky 56-inch
23-drawer toolbox
(model HOTC5623BB2S)
Husky 1025-pc
Mechanic Tool Set
(model H1025MTS)
Organizer Number Drawer Measurements
(inches)
Drawer 1 inch crow foot wrenches F-03166-R 9-1/2 X 19-3/4 X 3
Drawer 2 metric crow foot wrenches F-03165-R 9-1/2 X 19-3/4 X 3
Drawer 3 hex keys F-03177-R 9-1/2 X 19-3/4 X 3
Drawer 4   empty 27-7/16 X 19-3/4 X 2
Drawer 5   empty 27-7/16 X 19-3/4 X 2
Drawer 6 screwdrivers F-03176-R 27-7/16 X 19-3/4 X 2
Drawer 7 impact sockets F-03169-T 27-7/16 X 19-3/4 X 3
Drawer 8   empty 9-1/2 X 19-3/4 X 2
Drawer 9   empty 9-1/2 X 19-3/4 X 2
Drawer 10 flare-nut wrenches F-03164-R 9-1/2 X 19-3/4 X 2
Drawer 11 torx drivers F-03200-R 9-1/2 X 19-3/4 X 3
Drawer 12 sockets F-03174-T 51-7/16 X 19-3/4 X 4
Drawer 13   empty 15 X 19-3/4 X 3
Drawer 14 inch reversible ratcheting wrenches F-03168-R 15 X 19-3/4 X 3
Drawer 15 box wrenches F-03163-R 15 X 19-3/4 X 3
Drawer 16 metric reversible ratcheting wrenches F-03167-R 15 X 19-3/4 X 3
Drawer 17   empty 15 X 19-3/4 X 12
Drawer 18 drive tools & extensions F-03175-R 33-15/16 X 19-3/4 X 3
Drawer 19 inch non-reversible ratcheting wrenches F-03171-R 33-15/16 X 19-3/4 X 3
Drawer 20 inch combination wrenches F-03170-R 33-15/16 X 19-3/4 X 3
Drawer 21 metric non-reversible ratcheting wrenches F-03173-R 33-15/16 X 19-3/4 X 3
Drawer 22 metric combination wrenches F-03172-R 33-15/16 X 19-3/4 X 3
Drawer 23   empty 33-15/16 X 19-3/4 X 9

Notes:

This configuration uses 16 drawers to fit all the tools, leaving 7 drawers and the top compartment empty.

The wrenches are placed flat in the foam, making it easier to read their sizes.

The sockets fill the full-width drawer along with a few drive tools. The other ratchets and drive accessories are one drawer down. The impact sockets are one drawer above the full-width drawer.

Two drawers of inch ratcheting wrenches are placed side-by-side, with the inch combination wrenches one drawer below. A similar arrangement is used for the metric wrenches.

Drawer dimensions can vary. Please measure your toolbox before ordering.
