Foam Tool Organizer for
104 Icon Impact Sockets with 4 Drive Accessories

Overview

104 Icon Impact Sockets with 4 Drive Accessories

Fits 4 sets of SAE impact sockets on the left side. Fits 4 sets of metric impact sockets on the right. Also fits the 1/2-drive, 4-pc impact extension set.

Sizes are permanently laser marked on the foam.

Only fits impact sockets which are larger than chrome-plated sockets.

Recommended for 3-3/4 min drawer height.

Tool Notes

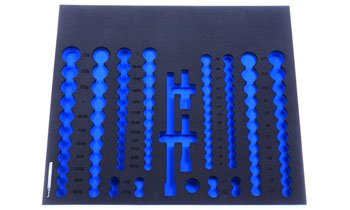

This tool organizer is designed to fit 8 Icon socket sets (104 sockets total), plus the 4-pc, 1/2-drive impact extension set IE3-4 (56884). The foam includes permanent laser-marked sizes by each socket. We cut the pockets to different depths so the shorter sockets are still easy to grab. The foam is sized for a 27-inch or 42-inch US General Series 3 box, but it may be trimmed to fit other drawers. The Icon impact socket sets needed are: I2SS-12 (59750), I2DS-12 (59739), I3SS-13 (59744), I3DS-13 (59748), I2SM-13 (70432), I2DM-13 (59756), I3SM-14 (59762), I3DM-13 (59746).

Drawing

Drawing L-06085-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

22-1/4 X 19-3/8 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 3-3/4 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

21-5/8 X 14-13/16 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

• See what's missing at a glance.
• Anyone can return tools to the right spot.
• Closed-cell PE tool foam is durable and has great chemical resistance.

Standard Colors

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
