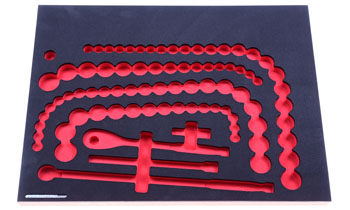

Foam Tool Organizer for
78 Quinn 1/2-drive Sockets with Ratchet and 4 Drive Tools

Overview

78 Quinn 1/2-drive Sockets with Ratchet and 4 Drive Tools

Fits the 83-pc 1/2-drive master socket set.

Fits (32) inch sockets, (46) metric sockets, (1) ratchet, (2) extensions, and (2) additional drive tools.

Does not fit impact sockets.

Recommended for 3-1/2 min drawer height.

Tool Notes

This tool organizer was designed to fit the 1/2-drive Quinn master socket set (70253). The Quinn 83-pc set includes 16 SAE sizes and 23 metric sizes with no skips in both short and deep lengths. The 90-tooth ratchet is called an ultra-thin sealed-head ratchet which measures 11-1/2 inches long. This ratchet is wider and longer than the 72-tooth ratchet. This organizer does not include laser-marked sizes allowing for a more compact arrangement. It can be trimmed to fit a variety of drawer sizes, but check the minimum size and height required before ordering.

Drawing

Drawing F-06041-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

23-3/4 X 17-3/4 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 3-1/2 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

21-1/2 X 14-3/16 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

• See what's missing at a glance.
• Anyone can return tools to the right spot.
• Closed-cell PE tool foam is durable and has great chemical resistance.

Standard Colors

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
