Foam Tool Organizer for
22 Tekton Punches and Chisels with 7 Hammers and 3 Pry Bars


22 Tekton Punches and Chisels with 7 Hammers and 3 Pry Bars

Fits the 20-pc punch and chisel set plus 2 extra punches, 3-pc dead blow set, 4-pc ball pein set, and 3-pc pry bar set.

Fits (22) punches, (3) dead blow hammers, (4) ball pein hammers, and (3) pry bars.

Recommended for 3 min drawer height.


Drawer Size
34 X 22 inches

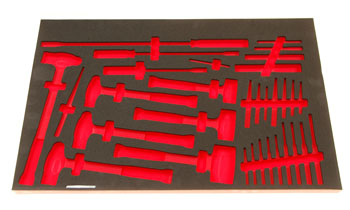

Foam Organizer for 22 Tekton Punches and Chisels with 7 Hammers and 3 Pry Bars

larger image

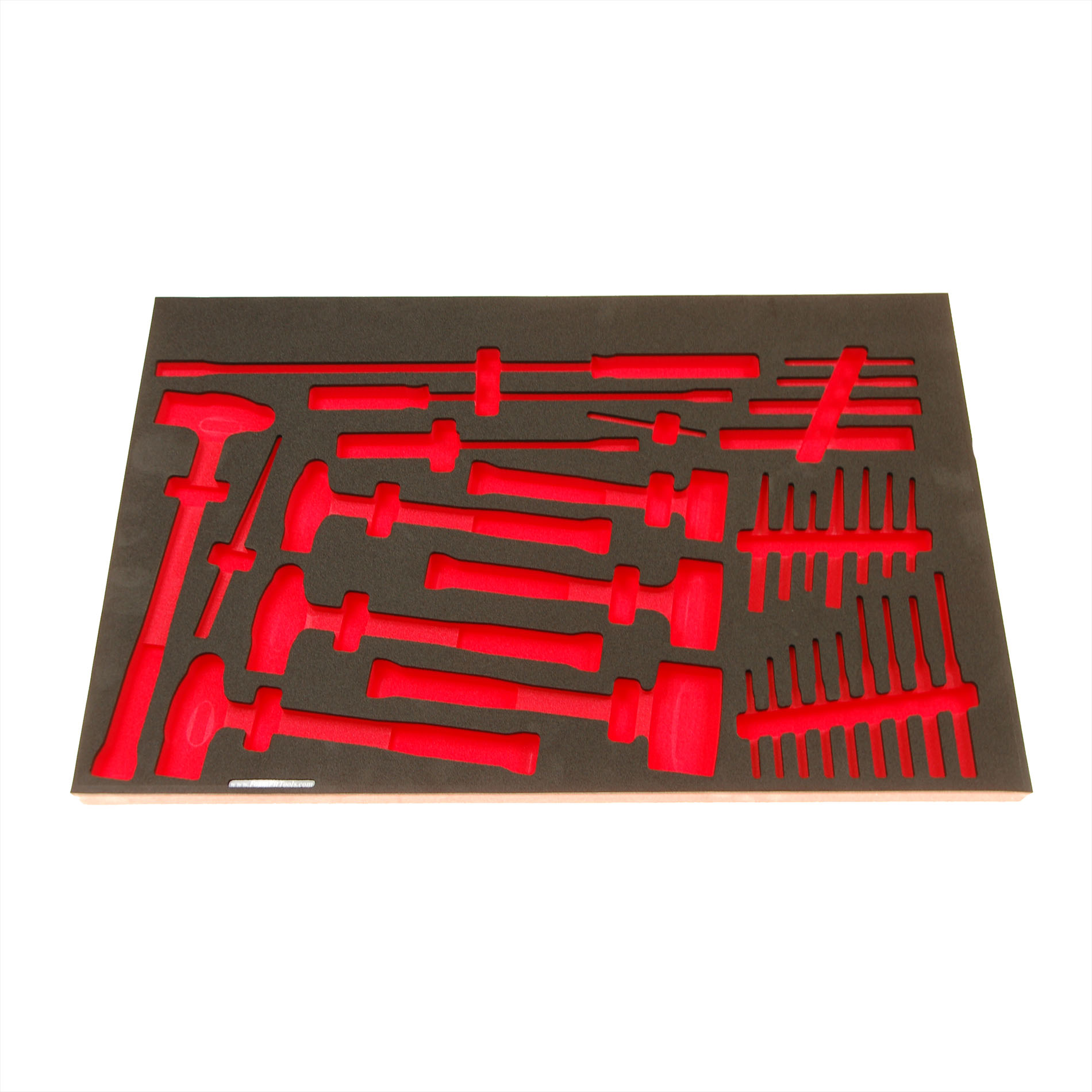

Foam Organizer for 22 Tekton Punches and Chisels with 7 Hammers and 3 Pry Bars

larger image

note: tools are not included

Tool List

Precision CNC-cut to fit 32 Tekton tools:

from 20-pc set PNC99001:
1/4 center punch (Tekton 66081)
3/8 center punch (Tekton 66083)
1/16 solid punch (Tekton 66071)
1/8 solid punch (Tekton 66073)
3/16 solid punch (Tekton 66075)
1/4 solid punch (Tekton 66077)
1/16 pin punch (Tekton 66051)
3/32 pin punch (Tekton 66052)
1/8 pin punch (Tekton 66053)
5/32 pin punch (Tekton 66054)
3/16 pin punch (Tekton 66055)
7/32 pin punch (Tekton 66056)
1/4 pin punch (Tekton 66057)
5/16 pin punch (Tekton 66058)
3/8 pin punch (Tekton 66059)
1/4 cold chisel (Tekton 66001)
3/8 cold chisel (Tekton 66003)
1/2 cold chisel (Tekton 66005)
3/4 cold chisel (Tekton 66007)
1 cold chisel (Tekton 66009)

1/2 center punch (Tekton 66085)
3/16 alignment punch (Tekton 66175)

from 3-pc set HDB93001:
13 oz dead blow hammer (Tekton HDB30013)
21 oz dead blow hammer (Tekton HDB30021)
39 oz dead blow hammer (Tekton HDB30039)

from 4-pc set HDB95001:
26 oz ball pein hammer (Tekton HDB50026)
36 oz ball pein hammer (Tekton HDB50036)
47 oz ball pein hammer (Tekton HDB50047)
50 oz ball pein hammer (Tekton HDB50050)

from 3-pc set LSQ42103:
12-inch pry bar (Tekton 42012)
17-inch pry bar (Tekton 42017)
25-inch pry bar (Tekton 42025)

Tool Notes

This tool organizer was designed to fit the 20-pc punch and chisel PNC99001, but we added spots for an alignment punch and a larger center punch. We included 7 Tekton hammers and 3 pry bars. The model numbers are PNC99001, 66085, and 66175 for the punches. The model numbers for the other sets are LSQ42103, HDB93001, and HDB95001. All of these Tekton tools are made in the USA. The foam can be trimmed to fit a variety of drawer sizes, but check your drawer measurements before ordering because this layout requires more drawer depth than is common.


Drawing F-05470-T.pdf

Printing the drawing at 100% scale can be an easy way to check if your tools will fit. Our drawings have multiple pages which can be printed on letter-size paper. Always change the printer setting from "fit" to 100%. If the border prints slightly too small, it is often due to this setting.

Drawer Size

34 X 22 inches (inside width by inside depth)

Drawer Height

Recommended for a drawer with at least 3 inches of vertical clearance.

Minimum Trimmable Size

It is possible to trim the margins to fit a smaller drawer. Trimmed tool organizers are not returnable. The minimum recommended size is:

32-5/8 X 19-9/16 inches

Contact customer service to order this organizer cut on a larger sheet or trimmed to a special size.

Features and Benefits

Standard Colors

black over red color combination blue over yellow color combination black over blue color combination

Special Colors

We make these colors in smaller batches, but they are often in stock. Contact customer service to order.

black over yellow color combination black over green color combination black over gray color combination

Additional Information

Each FoamFit insert is designed for shadowing a specific brand and set of tools. These organizers are made from high-quality tool foam with pockets precision-cut on our CNC routers.

The pockets are cut up to 1/2 inch deep in 3/4 inch thick tool foam, or up to 1 inch deep in 1-1/4 inch thick tool foam. Most inserts require less than 2 inches of height to fit in a 2-inch drawer (unless otherwise noted).

Our tool foam is two layers of closed-cell polyethylene foam. The contrasting top layer is thermally bonded to the bottom layer for maximum durability. The foam is resistant to most oils and fuels.
