13 Foam Tool Organizers to Fit
Husky 1025-pc Set in 52-inch Toolbox #3
Toolbox model H52CH6TR9HDV4
Overview
Fits Husky Set H1025MTS or H1025MTSPO into toolbox model H52CH6TR9HDV4
Uses 13 drawers. Lid compartment and 2 drawers are not used.
Please measure the toolbox to confirm the drawer sizes before ordering.
Organizers are also sold individually.

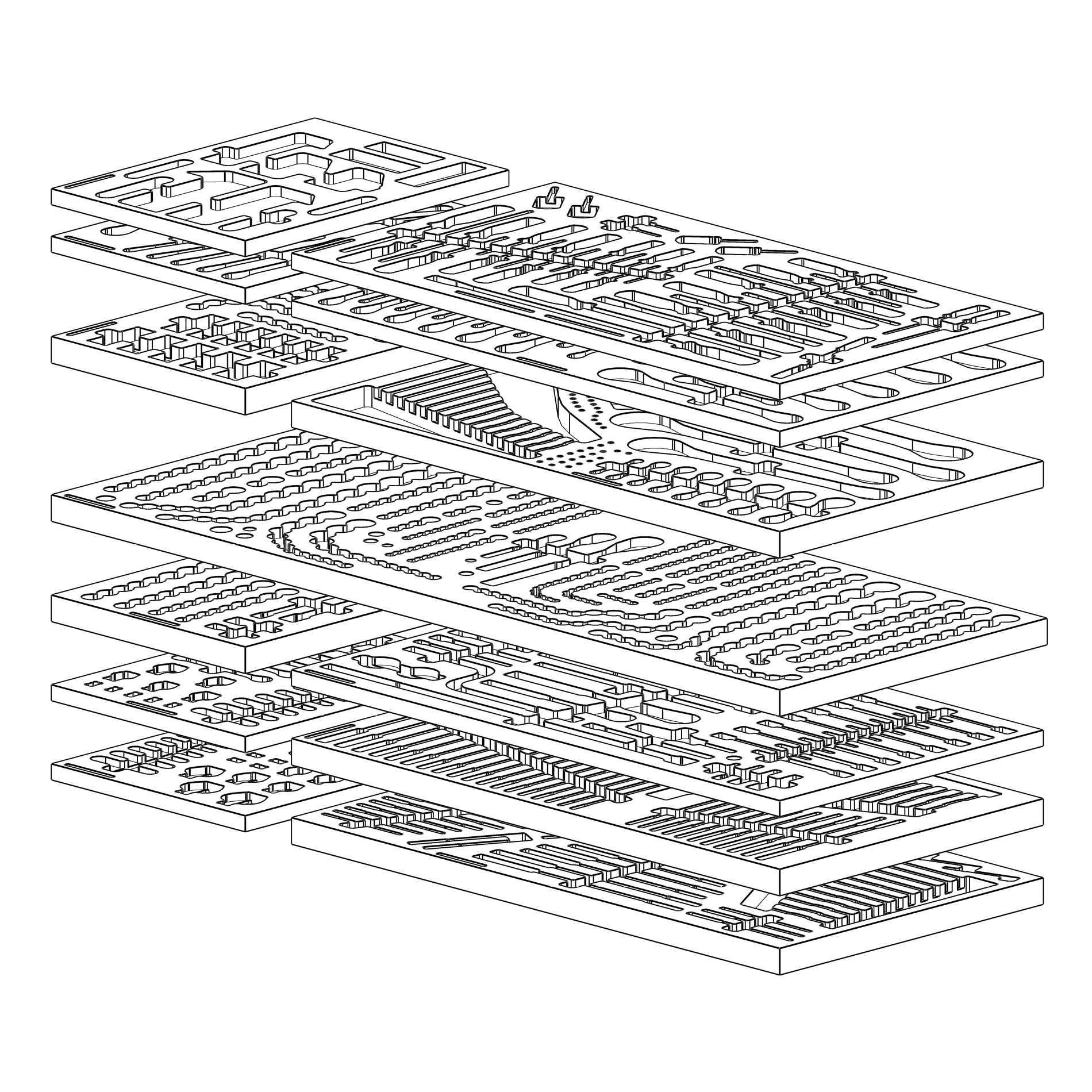

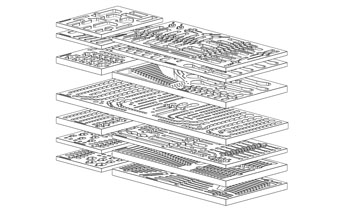

Exploded View Diagram (pdf)
Set of 13 Drawer Inserts
$975.80
Suggested Drawer Arrangement
| Husky 52-inch, 15-drawer toolbox | Husky 1025-pc Mechanic Tool Set (model H1025MTS or H1025MTSPO) |
Organizer Number | Photo | |
| toolbox model H52CH6TR9HDV4 |
measurements (inches) |
|||
| Drawer 1 | 12-1/2 X 17 X 2 | hex keys | F-05074-R |  |
| Drawer 2 | 12-1/2 X 17 X 2 | box-end wrenches | F-05077-R |  |
| Drawer 3 | 12-1/2 X 17 X 3-1/2 | metric impact sockets | F-05075-T |  |
| Drawer 4 | 31-1/2 X 17 X 2 | screwdrivers | F-05080-R |  |
| Drawer 5 | 31-1/2 X 17 X 2 | metric combination wrenches | F-05081-R |  |
| Drawer 6 | 31-1/2 X 17 X 3-1/2 | inch combination wrenches | F-05082-T |  |
| Drawer 7 | 47 X 17-1/4 X 4-1/2 | sockets | F-05073-T |  |
| Drawer 8 | 12-1/2 X 17 X 4 | inch impact sockets | F-05076-T |  |
| Drawer 9 | 12-1/2 X 17 X 4 | metric crow foot wrenches | F-05078-R |  |
| Drawer 10 | 12-1/2 X 17 X 4 | inch crow foot wrenches | F-05079-R |  |
| Drawer 11 | 12-1/2 X 18-1/2 X 9-1/2 | empty | ||
| Drawer 12 | 31-1/2 X 17 X 4 | drive tools & extensions | F-05083-R |  |
| Drawer 13 | 31-1/2 X 17 X 4 | metric ratcheting wrenches | F-05084-T |  |
| Drawer 14 | 31-1/2 X 17 X 4 | inch ratcheting wrenches | F-05085-T | |
| Drawer 15 | 31-1/2 X 17 X 9-1/2 | empty | ||
Notes:
This configuration uses 13 drawers to fit all the tools except for the trailer hitch wrench. Two drawers and the top compartment are empty.
Many of the wrenches are placed on edge to save space. The drawer inserts cover 5,300 square inches total.
The full-width drawer contains sockets and some drive tools. The other ratchets and drive accessories are one drawer down. The impact sockets are above and below the full-width drawer on the left side.
Two drawers of combination wrenches are placed in the top chest along with the box-end wrenches, screwdrivers, and hex keys. The ratcheting wrenches are placed in the bottom cabinet.
Drawer dimensions can vary. Please measure your toolbox before ordering.
